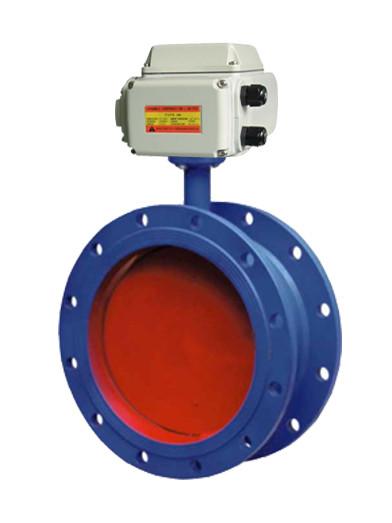

Flanged Ventilation DN1500 Electric Butterfly Valve

Electric ventilation butterfly valve (damper) with customized valve bracket or swinging arm

Features

Ventilation butterfly valve

• Low load with low operation torque
• Pipe pressure PN ≤ 0.1Mpa
• Size from DN100 to DN1500, 4” to 60”
• Leakage rate ≤ 1%
• Flanged, clamped and lug wafer connection type optional
• ISO 5211 standard top flange

Electric actuator

• The smallest size and most compact design in torque range from 1000Nm to 2500Nm
• Extra-large super hard copper alloy final stage worm gear to reduce force and abrasion of gear
• Double row chain from gear box to worm gear stem ensure torque transfer strength
• Strong motor equipped to make sure high start torque beyond rated torque in 10% under rated voltage
• Over 10000 times full stroke life cycle test with full rated load under duty rate 80%
• Match up to DN650 butterfly valve, DN350 ball valve and DN1200 ventilation butterfly valve and flap valve.
• Manual override with wrench or de-crutched handwheel
• CSA certified per UL standard/CE marked/RoHS 3.0

Description

DCL electric ventilation butterfly valves are widely used to shut off, control, divert or reduce the flow of corrosive and chemically-polluted exhaust air, flue gases and process gases. Such as following industries.

• Domestic and special waste incinerators

• Thermal power plants (e.g. gas turbine plants)

• Smelting works, production of precious and special metals, e.g. steel, copper, gold, silver, platinum, titanium, palladium

• Cement works and mineral oil refineries

• The process industry (chemicals, pharmaceuticals, foodstuffs) and the semi-conductor industry

Specification

DN1500 Electric Butterfly Valve

ISO 5211 flanged butterfly valve
