Fully Enclosed Motor DC24V 600Nm Explosion Proof Electric Actuator

  • 1
  • 2

Brand Name : DCL

Model Number : All explosion proof electric actuator

Certification : CE/ROHS/CSA/IP68/IECEx/ATEX/UL

Place of Origin : WUHAN,CHINA

MOQ : 1pc

Packaging Details : carton/pallet

Delivery Time : 7 working days

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000PCS/month

name : explosion proof electric actuator

Standard Time : 20s to 45s

Power Supply : 24VAC/110VAV/220VAC/380VAC/24VDC

type : Heavy duty actuator

Motor Power : 6W to 90W

feature : fully enclosed high performance motor

Contact Now

Heavy duty explosion proof electric actuator / fully enclosed high performance motor

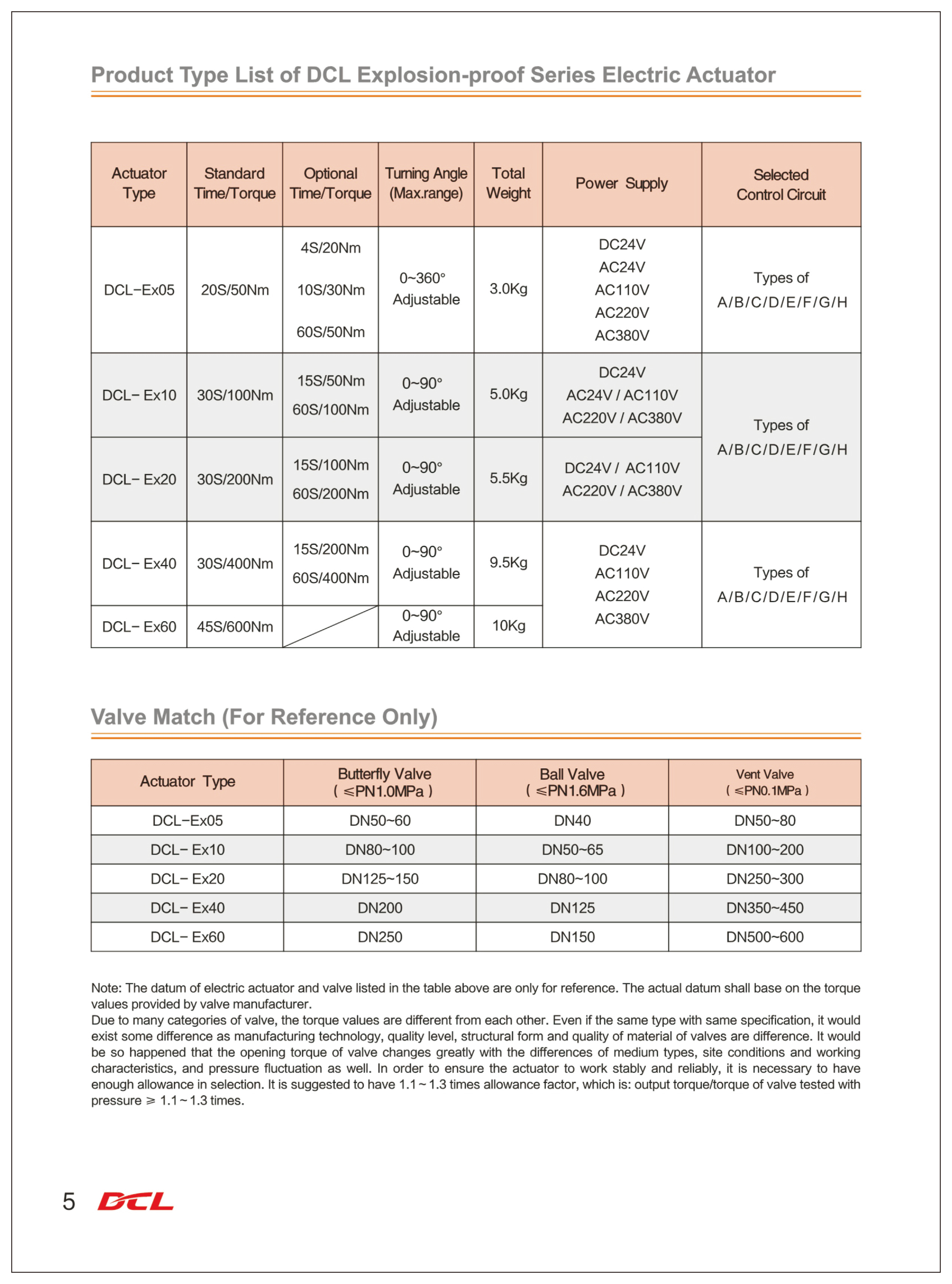

Specification:



Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-Ex05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 3.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex10 30S/100Nm 15S/50Nm 60S/100Nm 0~90°Adjustable 5.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 5.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex40 30S/400Nm 15S/200Nm 60S/400Nm 0~90°Adjustable 9.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex60 45S/600Nm   0~90°Adjustable 10Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-Ex05 DN50~65 DN40 DN50~80
DCL-Ex10 DN80~100 DN50~65 DN100~200
DCL-Ex20 DN125~150 DN80~100 DN250~300
DCL-Ex40 DN200 DN125 DN350~450
DCL-Ex60 DN250 DN150 DN500~600



Descriptions

DCL actuators use self-designed motors that is non-ventilated and full enclosed with high start torque. VC motors are squirrel-cage asynchronous induction motor. DC motors are permanent magnet brush motor. All motors from suppliers must be type tested by DCL to confirm every specification, such as the power, voltage-current curve, speed-torque curve and especially the temperature rise during heavy duty applications. Due to the very compact size of actuator, the temperature rise of motor must be low, to make sure the outer shell’s temperature will not go beyond 135℃ or 300.6F.



All actuators have got CSA certifications/ATEX certifications and IECEx certificates.





Heavy duty explosion proof electric actuator / fully enclosed high performance motor



Name: Explosion Proof Electric Actuator
Standard Time: 20s To 45s
Type: Heavy Duty Actuator
Protection Grade: IP68 NEMA 4X
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Feature: Fully Enclosed High Performance Motor
Standard Torque: 50Nm To 600Nm
Power Supply: 24VAC/110VAV/220VAC/380VAC/24VDC
Motor Power: 6W To 90W
Total Weight: 3kg To 10kg
Installation Angle: 360°





Features:

  • Quarter turn operation with mechanical limits
  • ExdIICT4 grade for ATEX and Class 1 Zone 1, Group C, D T4 grade for Class 1 Division 1
  • Watertight and whether proof IP68 and NEMA 4X high pressure die cast aluminum alloy enclosure
  • S2 short-time duty for on-off type with duty cycle 70% and 15mins non-stop operation
  • S4 intermittent duty for modulating type with duty cycle 70% and 1200 starts/hour
  • All metal gears with self-locking bronze alloy worm gear
  • Stainless steel visual valve position indicator with 10mm hard tempered glass
  • Manual override for emergency issue
  • CSA certification per UL and CSA standard/ATEX certified

Fully Enclosed Motor DC24V 600Nm Explosion Proof Electric ActuatorFully Enclosed Motor DC24V 600Nm Explosion Proof Electric ActuatorFully Enclosed Motor DC24V 600Nm Explosion Proof Electric Actuator
